Flood and breach closure, wildfire guard, post-event access, and the debris and route clearance that follow. The excavator, dozer, loader or tractor is the one the municipality or the utility already owns; Responder CS-810 takes its seat, works the controls the manufacturer fitted, and lifts out when the ground is handed back.
What is supplied is a conversion of plant the municipality or the utility already owns and already maintains. The machine stays in your yard, with the people who look after it now.

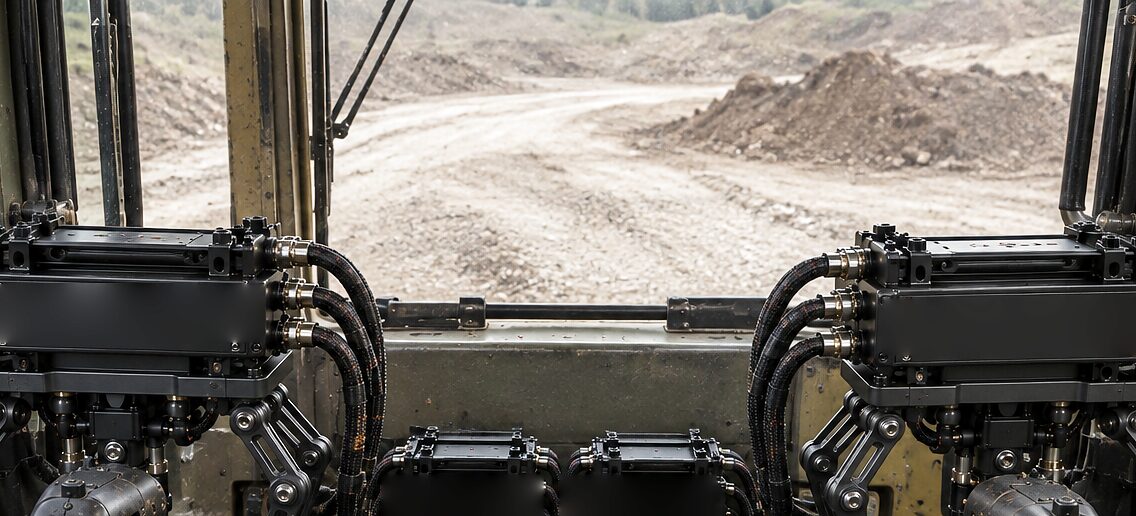

Responder CS-810 is a removable operator. It sits in the operator's seat in a cradle resting on the machine's own seat pan, with the machine's own lap belt threaded through a closed tunnel between the cradle rails, and it works that machine's joysticks, levers, pedals and switches with its own actuators. A camera reads the dashboard.
Nothing is cut, wired or reprogrammed to accept it. It never connects to the machine's CAN bus, ECU or firmware, and the only wire between the two is a fused feed from the accessory point. The dock anchors to seat-belt pins the manufacturer already fitted, so the fit is done once and stays with the machine. The unit lifts out and the machine is standard again.
Age is not a barrier: the unit reaches the joysticks, levers, pedals and switches an operator reaches, and leaves the machine's electronics alone. The Machines page carries the seven machine families and what the unit reaches in each cab; Responder CS-810 carries the profile in full; and the Roles page sits above this door and names the others.
Four occasions a municipal or utility yard is already called out to, and in each one the machine can stand where the seat should not.
Berms and closures pushed out across moving or open water, with the rock and fill work behind them. The failing embankment is the ground the seat would sit on.
Cutting line ahead of a fire and holding a guard on ground a crew would rather not stand on for the time it takes. Heat, smoke and a front that moves are exposures the empty seat removes.
Opening the road the rest of the response has to come in on, before anything else can reach the far side. The route is closed to traffic while the machine works it. Without that, it is not a task this door takes.
Moving what the event left behind so people and vehicles can move again, before anyone has to walk the pile or stand under what is still standing.
A machine built for this work can stand in floodwater, on a slope that is still moving, or downwind of a plume. The seat inside it was never built for any of that. Contaminated ground and spill sit on the same door for the same reason: the hazard is in the ground rather than on top of it.
Four questions decide a callout, and they are the four that decide any site: is the seat the exposure, is the task fixed, can the ground be closed to the public, and how much of the callout does the machine actually spend working.
Utilization is low on this door by nature, because an emergency is not a schedule. It never carries a row on its own. What decides a row is whether a person would otherwise be sitting in the exposure, and whether the ground can be closed.
| Occasion | Constraint | Fixed task | Private site | No public traffic | Utilization | Verdict |
|---|---|---|---|---|---|---|
| Flood and breach closure | Often | Partly | Mostly | Yes | Low | Worth it to get a person out |
| Wildfire guard and fuel breaks | Often | Yes | Yes | Yes | Low, in season | Assess: smoke can blind the sensing |
| A slope after a failure | Often | No | Yes | Yes | Low | Worth it to get a person out |
| Contaminated ground and spill | Often | Partly | Yes | Yes | Low | Worth it to get a person out |
| Debris and rubble clearance | Sometimes | Partly | Mostly | Mostly | Low | Assess |
| Route opening after an event | Sometimes | Partly | No | Mostly | Low | Assess: only with the route closed |
| Rescue with people inside the work area | No | No | No | No | Low | Refused |
| Public-road work during a response | No | No | No | No | Low | Refused |
Human safety comes first, on every line. Two rows are refused outright, and neither refusal is a scheduling matter: people inside the work area, and public traffic within reach of the machine.
A council asks who starts the machine, who can stop it, and what happens when neither is standing beside it. The list below answers in the order it holds on the ground.
A named person walks the ground, starts the machine and clears the job, machine by machine and callout by callout. Nothing moves before that.
The safe state is designed per task rather than chosen in the moment, and the reason is the ground this door describes. On a failing slope or beside a burning structure, stopping where it stands and waiting for a person can itself put a person in harm's way.
The design names ISO 12100, ISO 13849, ISO 17757 and ISO 19014. Safety carries the authority order, the wired stop, the manual release, the daily calibration and the minimum-risk condition in full, and it is the page to hand a council.
The left column is a yard that owns its plant and its operators. The right column reads the same on every door of this line, and none of it is a setting anyone edits.
Six steps, in order. The yard keeps its machine through all of them, and the dock stays on it when the unit comes off.
The machine is identified and its control geometry surveyed: where every lever, pedal and switch sits in that cab, and how far each one travels.
The dock anchors to the machine's own seat-belt pins, and the removable kit and sensor mounts go on. No cutting, no tapped harness, no flashed controller.
Control zero and neutral proof, sensor calibration and time sync, static diagnostics and fault injection, then bounded motion under qualified supervision. Commissioning is a safety act rather than an install.
Only compatible skills are loaded, the configuration is accepted for the envelope it is intended for, and it is signed and sealed with a rollback package. Authorization is a lease: time-limited, delivered by wire or at the dock, never by radio.
A named person authorizes each job and watches it. Withdrawal or expiry ends in a safe stop and then the minimum-risk condition; the unit stays installed until it is re-authorized, and the machine itself is never touched.
The unit lifts out, and the operator's station is returned to baseline and inspected. The dock stays on the machine, ready for the next call.
The municipality or the utility owns the machine and owns the hardware. The configuration and the application are Canadian Shield's, licensed and revocable, and the keys are held in Canada. Every act sits on one chained record and nothing is deleted from it, so a task can be reconstructed afterwards. Operations carries the commissioning sequence, the configuration record and the sustainment cycle, including calibration intervals, spares and role-based operator and maintainer training.
Send the machines the yard runs and the seat the last flood, fire or washout put a person into. That is enough for a first answer.
The reply names which of those machines the line covers, what a control-geometry survey would look at in each cab, and what a first fitted task on your own ground would involve. Nothing on this page is an offer, and this site carries no prices.
The CDNS Autonomy page carries the line this door belongs to. The Responder page carries the same subject in full, for a council or board package, and Contact reaches the same desk.
